Key Features:

End Closure: Designed to seal the end of a pipe, vessel, or other equipment, effectively stopping the flow and preventing leaks.
Material Versatility: Available in a wide range of materials such as carbon steel, stainless steel, alloy steel, and various plastics, suitable for different pressure and temperature conditions.
High Strength: Capable of withstanding high pressure and temperature applications, depending on the material and design.

Common Types:

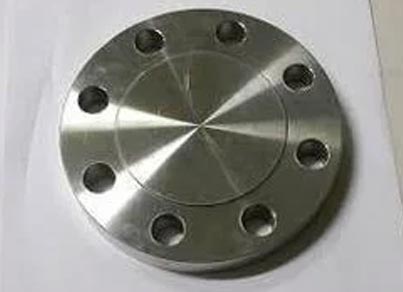

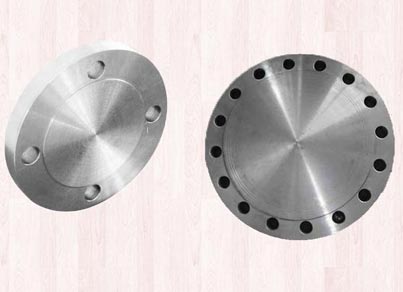

Standard Blind Flange: A flat, solid disc with bolt holes around the perimeter. Used for general applications to seal pipe ends.

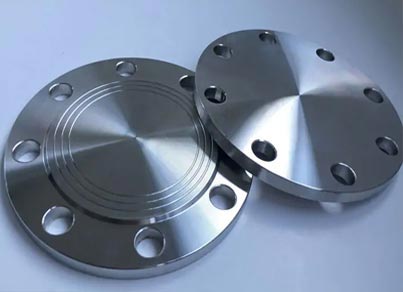

Raised Face Blind Flange: Features a raised surface around the bolt holes to provide a better seal and is used in higher pressure applications.
Spectacle Blind Flange: Consists of two connected pieces: a blind flange and a spacer (or spacer ring). The spacer can be replaced with the blind flange to seal the pipe.

Standards and Specifications:

ANSI/ASME B16.5: Standard for pipe flanges and flanged fittings, including blind flanges, specifying dimensions and tolerances.
ASTM A105: Specification for carbon steel forged fittings for piping applications.
ASTM A182: Standard for alloy and stainless steel pipe flanges, fittings, and valves.
ISO 9001: Quality management system standard ensuring consistent manufacturing and quality control.

Property	Details
Function	Seals the end of a pipe, vessel, or equipment to prevent fluid or gas flow
Common Types	Standard Blind Flange, Raised Face Blind Flange, Spectacle Blind Flange, Drilled Blind Flange
Materials	Carbon Steel, Stainless Steel, Alloy Steel, Plastic (PVC, CPVC)
Pressure Ratings	Varies by material and design; typically up to 1500 PSI for metal flanges
Temperature Ratings	Depends on material; generally ranges from -50°F to 1500°F for metals
Connection Types	Bolted connection with the mating flange
Standards and Specifications	ANSI/ASME B16.5 (Flanges and Fittings), ASTM A105 (Carbon Steel), ASTM A182 (Alloy/SS), ISO 9001 (Quality)
Available Sizes	Typically from 1/2” to 24” diameter or larger
Surface Finishes	Bare, Galvanized, Epoxy Coated, Polyurethane Coated for corrosion protection
Applications	Pipeline Systems, Vessels and Tanks, Pressure Testing, Valve Isolation
Advantages	Effective sealing, ease of installation, cost-effective, versatile
