Key Features:

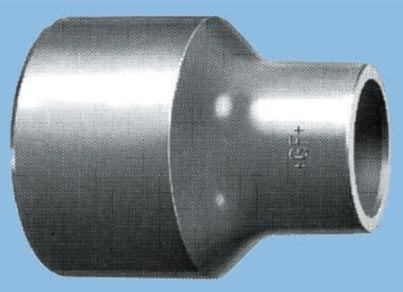

Diameter Transition: Reduces or enlarges the diameter of a pipe to match different pipe sizes.
Variety of Materials: Available in materials such as carbon steel, stainless steel, copper, PVC, and CPVC to suit various applications.
Pressure and Temperature Ratings: Designed to handle specific pressure and temperature conditions based on the material and design.
Connection Types: Can be threaded, welded, or flanged, depending on the system requirements.

Common Types:

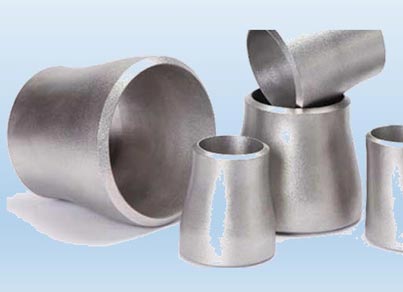

Concentric Reducer: Both the large and small ends are aligned along a common centerline, commonly used for vertical transitions.

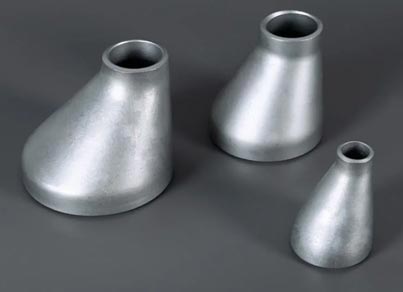

Eccentric Reducer: The small end is offset from the centerline of the large end, suitable for horizontal transitions and applications where air pockets need to be avoided.

Standards and Specifications:

ANSI/ASME B16.9: Standard for factory-made wrought steel buttwelding fittings.
ASTM A234: Standard specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for High-Temperature Service.
ISO 9001: Quality management system standards for manufacturing processes

Property	Details
Function	Connects pipes of different diameters to facilitate smooth transitions
Common Types	Concentric Reducer, Eccentric Reducer
Materials	Carbon Steel, Stainless Steel, Copper, Plastic (PVC, CPVC)
Pressure Ratings	Varies by material and design; should match system requirements
Temperature Ratings	Depends on material; typically ranges from -50°F to 1500°F
Connection Types	Threaded, Welded, Flanged
Standards and Specifications	ANSI/ASME B16.9 (Steel), ASTM A234 (Steel), ISO 9001 (Quality)
Available Sizes	Typically from 1/8” to 24” diameter or larger
Surface Finishes	Bare, Coated (various coatings for corrosion protection)
Applications	Plumbing, HVAC, Industrial Processes, Construction
