Key Features:

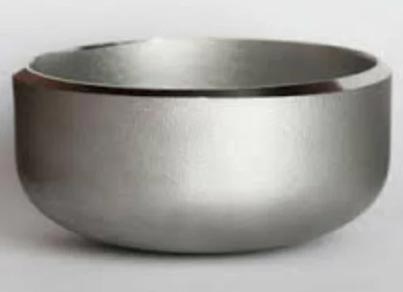

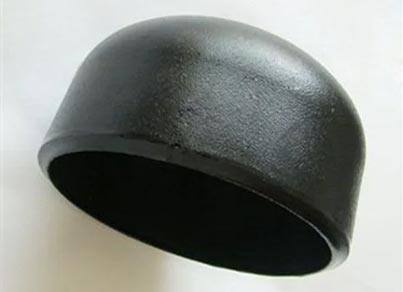

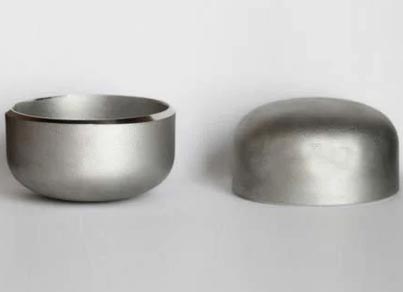

Sealing: End caps are designed to securely seal the end of pipes, providing a tight closure that prevents leakage or contamination of the piping system.
Variety of Materials: Available in materials like carbon steel, stainless steel, copper, brass, PVC, CPVC, and more, depending on the application and environment.
Pressure and Temperature Ratings: Capable of handling varying levels of pressure and temperature based on the material used. Metal caps generally handle higher pressure and temperature compared to plastic or composite caps.

Common Types:

Butt-Weld End Cap: Designed for permanent closure, often welded onto the pipe. It provides a strong, seamless finish and is used in high-pressure applications.
Threaded End Cap: Screws onto the threaded pipe end, typically used in systems where the cap may need to be removed for future expansion or maintenance.
Socket-Weld End Cap: Fitted over the pipe end and welded into place, providing a solid and secure seal for permanent applications.

Standards and Specifications:

ANSI/ASME B16.9: Standards for factory-made wrought steel buttwelding fittings, including end caps.
ASTM A234: Specification for carbon and alloy steel pipe fittings for high-temperature service.
ISO 9001: Ensures quality in manufacturing end caps, following globally recognized standards.

Property	Details
Function	Closes or seals the end of a pipe to prevent fluid or gas flow
Common Types	Butt-Weld End Cap, Threaded End Cap, Socket-Weld End Cap, PVC/Plastic End Cap
Materials	Carbon Steel, Stainless Steel, Copper, Brass, PVC, CPVC, Alloy Steel
Pressure Ratings	Varies by material; up to 6000 PSI for metal caps
Temperature Ratings	Depends on material; typically ranges from -50°F to 1500°F
Connection Types	Threaded, Welded, Socket-Welded
Standards and Specifications	ANSI/ASME B16.9 (Steel), ASTM A234 (Steel), ISO 9001 (Quality)
Available Sizes	Typically from 1/8” to 48” diameter or larger
Surface Finishes	Bare, Galvanized, Epoxy Coated, Polyurethane Coated for corrosion resistance
Applications	Plumbing, HVAC, Industrial Piping, Construction, Chemical and Petrochemical
Advantages	Leak-proof seal, durable, easy installation, removable options
