Key Features:

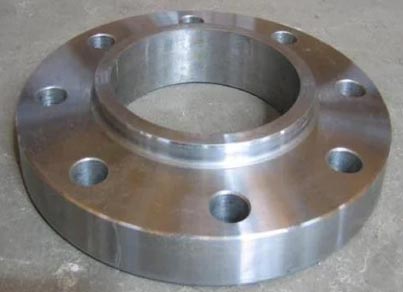

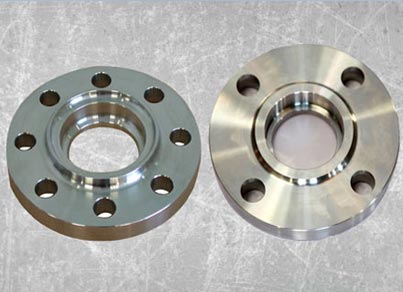

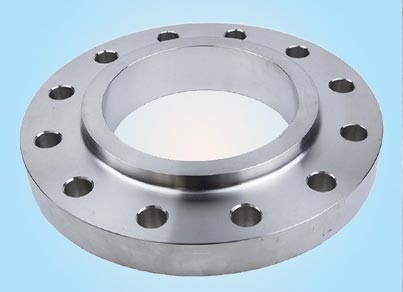

Ease of Installation: Slip-on flanges are easy to install. They simply slide over the end of the pipe, align with the bolt holes, and are then welded to the pipe.
Cost-Effective: Typically less expensive than weld neck flanges because they require less machining and welding.
Versatile Materials: Available in materials such as carbon steel, stainless steel, alloy steel, and various grades of plastic, catering to a wide range of applications.

Common Types:

Standard Slip-On Flange: The most common type, used in general piping applications. It has a flat face and is suitable for moderate pressure and temperature applications.
Slip-On Flange with Raised Face: Features a raised face to provide a better seal and is used in higher pressure applications where additional sealing is needed.
Slip-On Flange with Threaded Bore: Includes internal threads for easy connection with threaded pipes or fittings.

Standards and Specifications:

ANSI/ASME B16.5: Standard for pipe flanges and flanged fittings, including slip-on flanges, specifying dimensions and tolerances.
ASTM A105: Specification for carbon steel forged fittings for piping applications.
ASTM A182: Standard for alloy and stainless steel pipe flanges, fittings, and valves.
ISO 9001: Quality management system standard ensuring consistent manufacturing and quality control.

Property	Details
Function	Connects pipes, valves, and equipment by sliding over the pipe end and welding in place
Common Types	Standard Slip-On Flange, Slip-On Flange with Raised Face, Slip-On Flange with Threaded Bore, Slip-On Flange with Welded Neck
Materials	Carbon Steel, Stainless Steel, Alloy Steel, Plastic (PVC, CPVC)
Pressure Ratings	Varies by material and design; typically up to 1500 PSI for metal flanges
Temperature Ratings	Depends on material; generally ranges from -50°F to 1500°F for metals
Connection Types	Welded to the pipe; can also be bolted with gaskets for a leak-proof seal
Standards and Specifications	ANSI/ASME B16.5 (Flanges and Fittings), ASTM A105 (Carbon Steel), ASTM A182 (Alloy/SS), ISO 9001 (Quality)
Available Sizes	Typically from 1/2” to 24” diameter or larger
Surface Finishes	Bare, Galvanized, Epoxy Coated, Polyurethane Coated for corrosion protection
Applications	General Piping Systems, Chemical and Petrochemical, HVAC Systems, Water Treatment
Advantages	Easy to install, cost-effective, versatile, reliable
