Key Features:

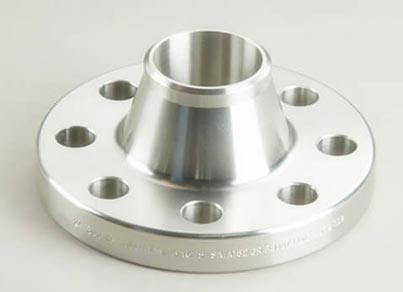

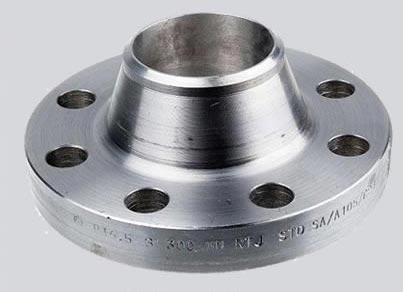

Tapered Hub: The flange has a long, tapered neck that is welded to the pipe, creating a strong and smooth transition from the pipe to the flange.
High Strength: Designed to withstand high-pressure and high-temperature applications due to the robust weld joint and the continuous reinforcement provided by the tapered neck.
Versatile Materials: Available in materials such as carbon steel, stainless steel, alloy steel, and various grades of high-strength alloys, making them suitable for a wide range of applications.

Common Types:

Long Weld Neck Flange: Features a longer neck compared to the standard weld neck flange. It is used in applications where additional reinforcement and support are needed.
Short Weld Neck Flange: Has a shorter neck and is used where space is limited but strong, reliable connections are still required.
Blind Weld Neck Flange: A type of weld neck flange without a bore. Used to seal the end of a pipe or vessel.

Standards and Specifications:

ANSI/ASME B16.5: Standard for pipe flanges and flanged fittings, including weld neck flanges, specifying dimensions and tolerances.
ASTM A105: Specification for carbon steel forgings for piping applications.
ASTM A182: Standard for alloy and stainless steel pipe flanges, fittings, and valves.
ISO 9001: Quality management system standard ensuring consistent manufacturing and quality control.

Property	Details
Function	Connects pipes, valves, and other equipment with a strong, welded connection
Common Types	Long Weld Neck Flange, Short Weld Neck Flange, Blind Weld Neck Flange
Materials	Carbon Steel, Stainless Steel, Alloy Steel, High-Strength Alloys
Pressure Ratings	Varies by material and design; typically up to 6000 PSI for metal flanges
Temperature Ratings	Depends on material; generally ranges from -50°F to 1500°F for metals
Connection Types	Welded to the pipe
Standards and Specifications	ANSI/ASME B16.5 (Flanges and Fittings), ASTM A105 (Carbon Steel), ASTM A182 (Alloy/SS), ISO 9001 (Quality)
Available Sizes	Typically from 1/2” to 24” diameter or larger
Surface Finishes	Bare, Galvanized, Epoxy Coated, Polyurethane Coated for corrosion protection
Applications	Oil and Gas, Chemical and Petrochemical Plants, Power Generation, Water Treatment
Advantages	High strength, durable, leak-proof, versatile, easy to install
